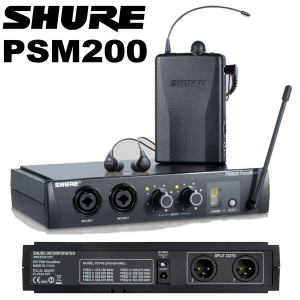

Shure PSM200-K3E Wireless In Ear Monitor System with SE112 Earphones
Full Description
Wireless Monitoring System
To start monitor your live performance in real time with the Shure SE112 headphones simply connect your desired audio source to the XLR/Line level connections on the front of the transmitter and set the transmission frequency to match with the receiver. Then plug in the SE112 headphones and use the on board controls on the bodypack to fine tweak until you are happy with the volume level.
Shure SE112 Headphones
The Shure SE112 headphones are a premium set of in-ear headphones which incorporate a sound cancelling design to reduce unwanted noise from the surrounding environment making them perfect for live performance. Additionally the soft silicone buds adapt to suit a range of ear sizes providing a comfortable and secure fit.
Features
Robust and Reliable Wireless Monitoring System
Built-In Headphone and Audio Limiter
Front Mounted Antenna
2 x Mic/Line Input Channels for Mix Control
Up to 100m Operating Distance
Volume Control on Bodypack Receiver
Rack Mountable (1/2 Rack Space)
High Performance SE112 In-Ear Headphones
Selectable Frequency Bandwidth (600-630 MHz)
Specifications
General
Transmitter Inputs: 2 x XLR / 6.3mm Jack Combo (Mic/Line Level)
Transmitter Output: 2 x XLR Split Outputs
Frequency Response: 30 Hz - 12 kHz
Transmitting Frequency: 600-630 MHz (Selectable)
RF Output Power: 10 - 30 mW
Operating Distance: Up to 100m
Harmonic Distortion: 1.5
S/N Ratio: 80 dB (A)
Listening Mode: Mono
Compatible Systems (Per Band): 4
Wired Body Pack Option: Yes
Personal Mix Control: On Transmitter
Remoteable Transmitter: No
Battery Life (Wired): 6 Hours
Battery Life (Wireless): 4 Hours
EP2T TransMixer
Modulation Limiter: Internal Peak Limiter (>10:1 Hard Knee Compression)
Antenna: 1/4 Wavelength, Semi-Rigid, PCB Mount
Connector Type: XLR / 1/4" Jack Combo
Nominal Input Level: - 25 dBu (50 Volume)
Maximum Input Level: - 5 dBu (50 Volume)
Current (Max): 170 mA
Height: 8.6"
Width: 5.6"
Depth: 1.7"
Weight: 370g
P2R Receiver
RF Sensitivity: 109 dBm
Squelch Threshold: 102 dBm
Antenna: Attached Whip
Audio Input Connector: 1/4" Jack (Mono)
Impedance: 1 M Ohm
Input Level (Max): LO - 0 dBu / HI - 10 dBu
Frequency Response: 30 Hz to 20 kHz (Earphone Dependent)
