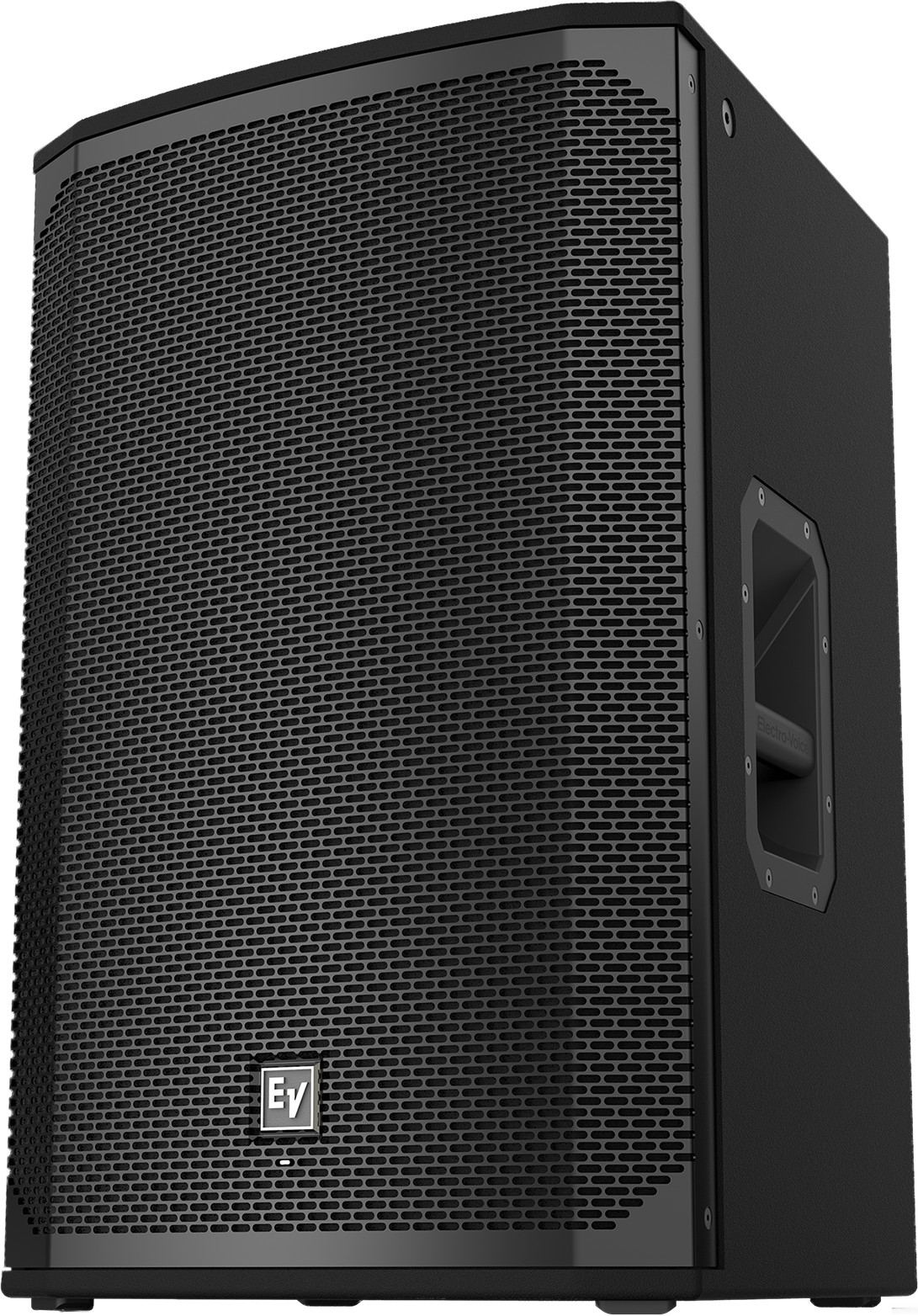

If you want to maximize your performance with killer sound and best-in-class features, the Electro-Voice EKX-15P is a great way to do it. Experience powerful bass and room-shaking volume, courtesy of a 15" woofer and 1,500-watt amplifier. Your entire audience will enjoy precise and consistent coverage, thanks to EV's patented Signal Synchronized Transducer (SST) waveguide design. Digital signal processing provides convenient presets, system-match crossovers, a three-band EQ, and more. The Electro-Voice EKX-15P's rugged wood enclosure was built for hard touring, and multiple mounting points make installation a breeze.
Electro-Voice EKX-15P Features:
- 1,500W Class D amplifier with 15" woofer and 1" high-frequency titanium compression driver
- 44Hz-20kHz frequency range and 134dB maximum SPL deliver immersive sound and room-shaking volume
- Signal Synchronized Transducer (SST) waveguide design ensures that your audience experiences precise and consistent coverage

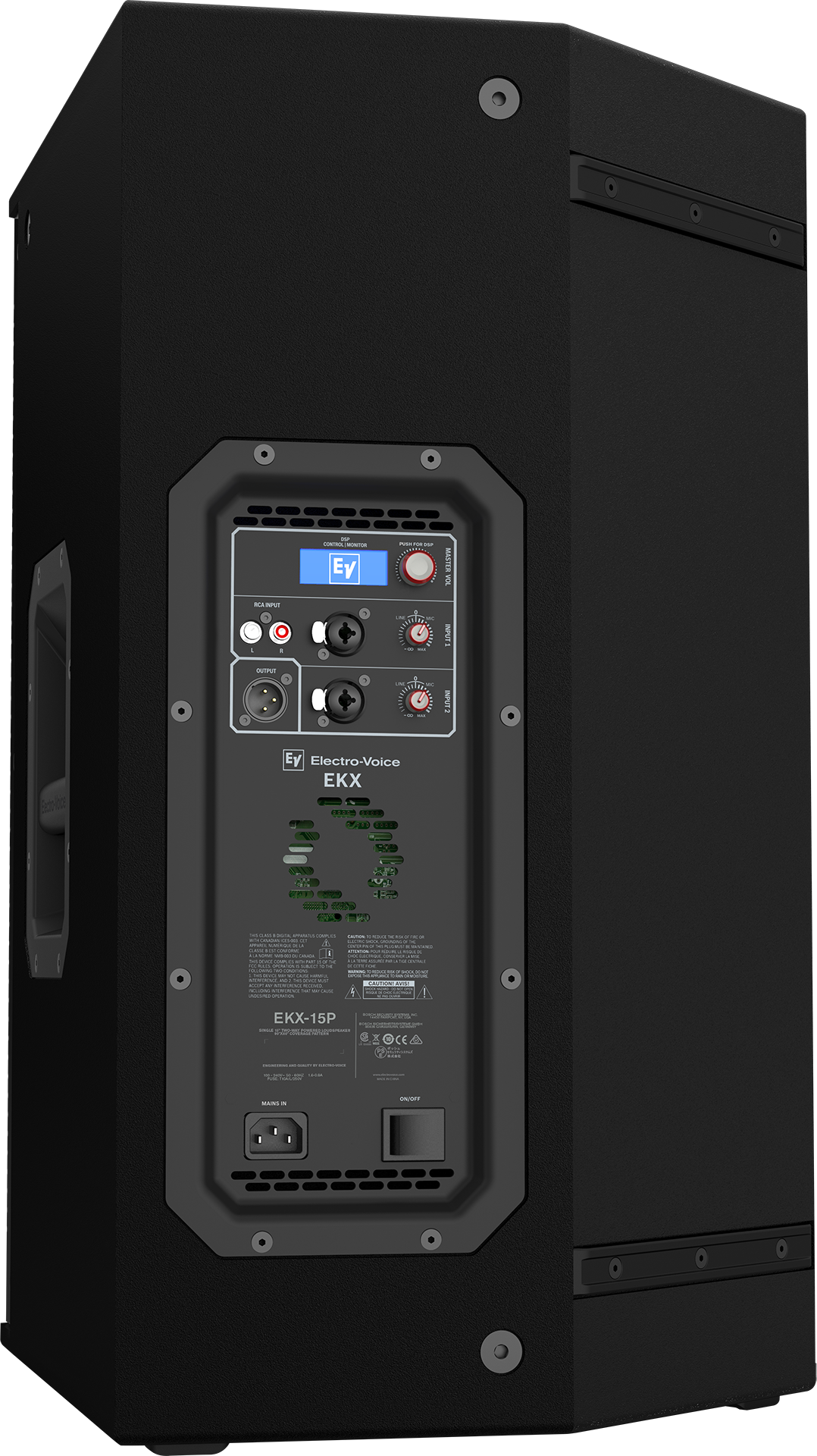

- 2-channel mixer with XLR, TRS, and RCA inputs along with flexible gain controls and a convenient clip indicator
- QuickSmartDSP provides effective system optimization with presets for your application and location
- Programmable crossover for easy subwoofer integration
- Intelligent thermal management with variable-speed fan keeps your system cool

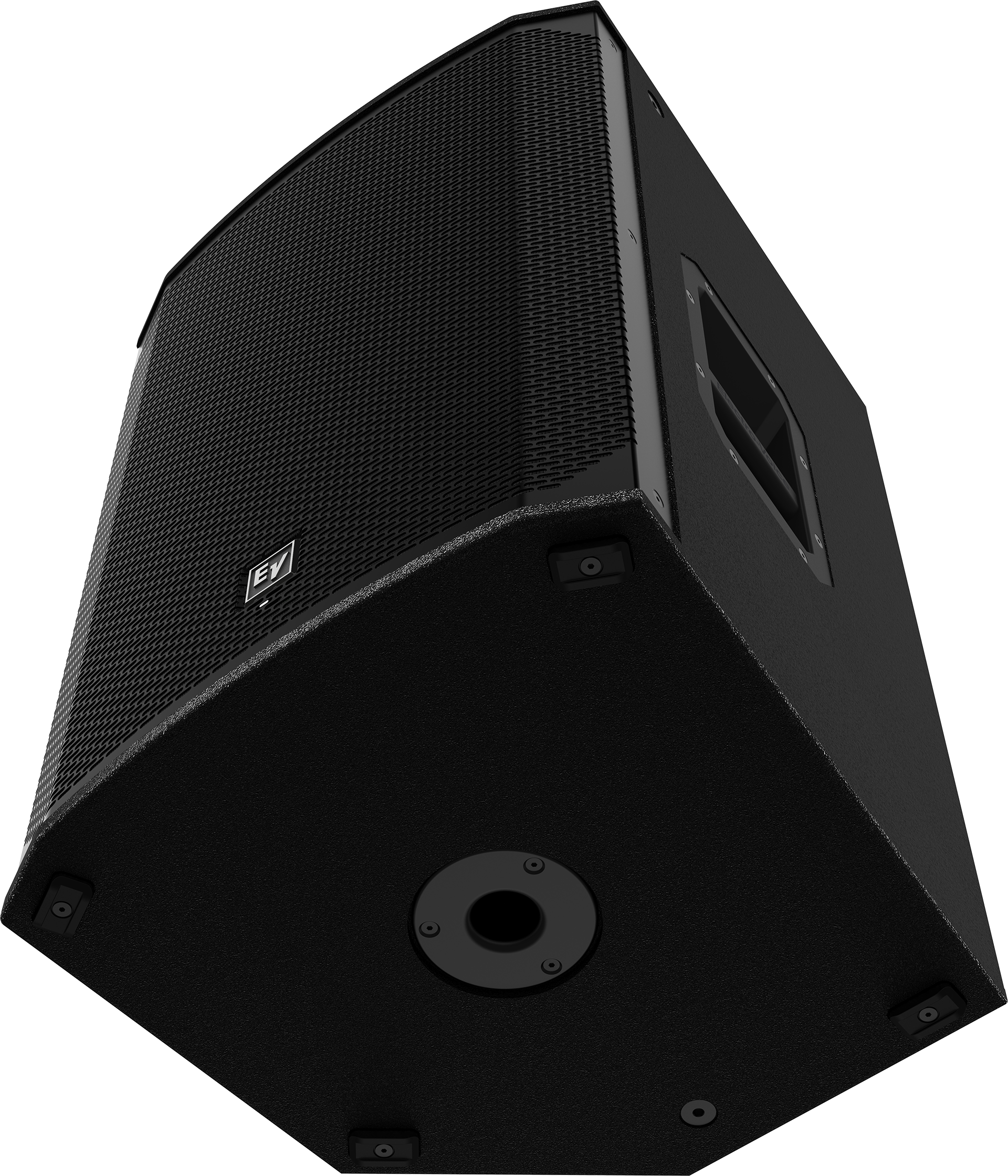

- Mount it on a tripod, stack it on a subwoofer, suspend it, or position it onstage for monitoring

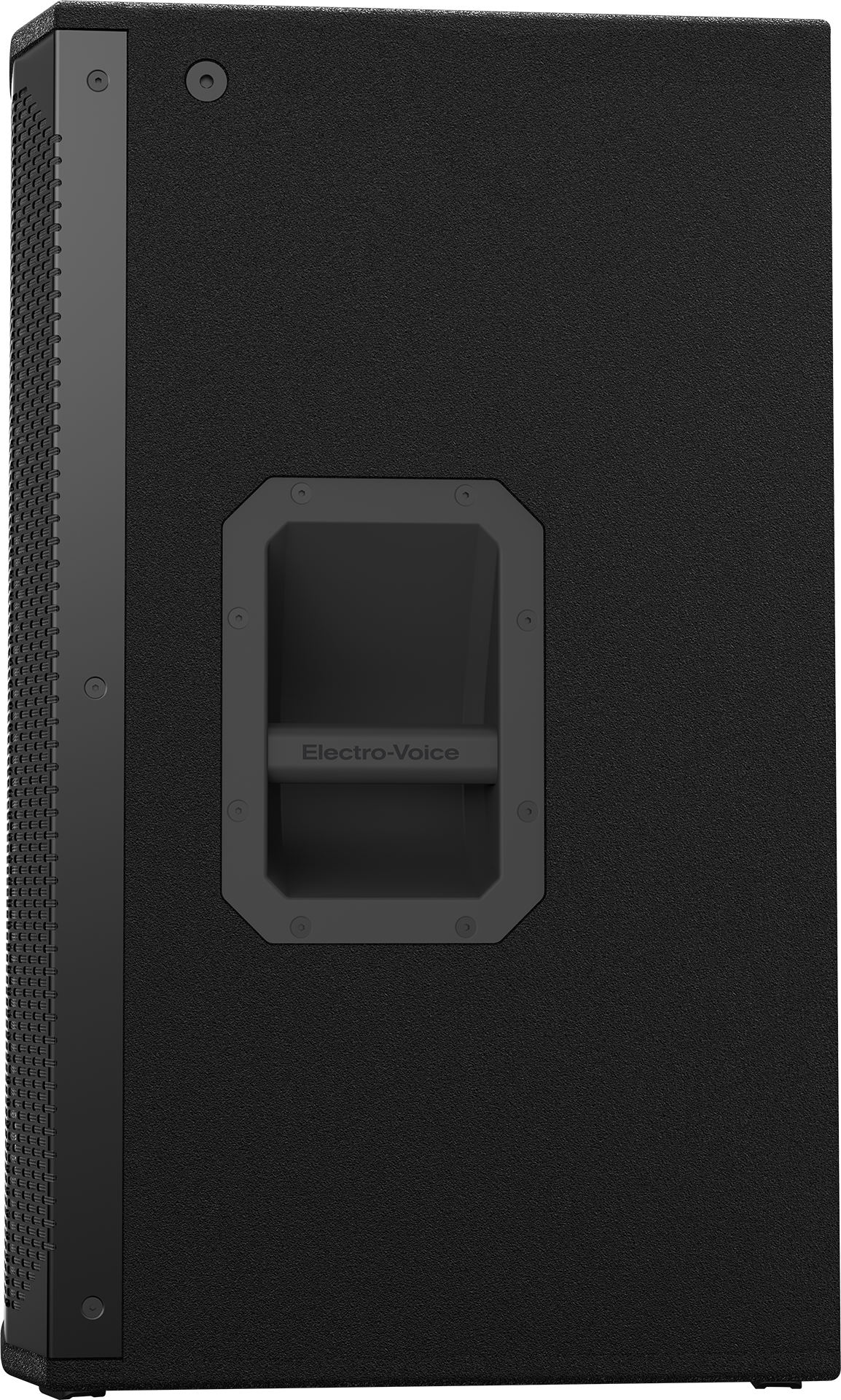

- Light weight and built-in handles provide for easy transportation
- Rugged, road-ready construction
TECH SPECS
| Powered: | Yes |
| Power Configuration: | Single Amp |
| Channels: | 2-channel mixer |
| LF Driver Size: | 15" EVS-15M woofer |
| HF Driver Size: | 1" DH-1M HF titanium compression driver |
| Total Power: | 1500W |
| Inputs: | 2 x XLR-1/4" combo, 2 x RCA |
| Outputs: | 1 x XLR |
| Frequency Response: | 55Hz-18kHz (-3 dB), 48Hz-20kHz (-10 dB) |
| Crossover Frequency: | 1.7kHz |
| Maximum Peak SPL: | 134 dB SPL |
| Horizontal Coverage Angle: | 90° |
| Vertical Coverage Angle: | 60° |
| Signal Processing: | QuickSmart DSP |
| Enclosure Material: | 15mm plywood with EV coat and 18 gauge steel grille |

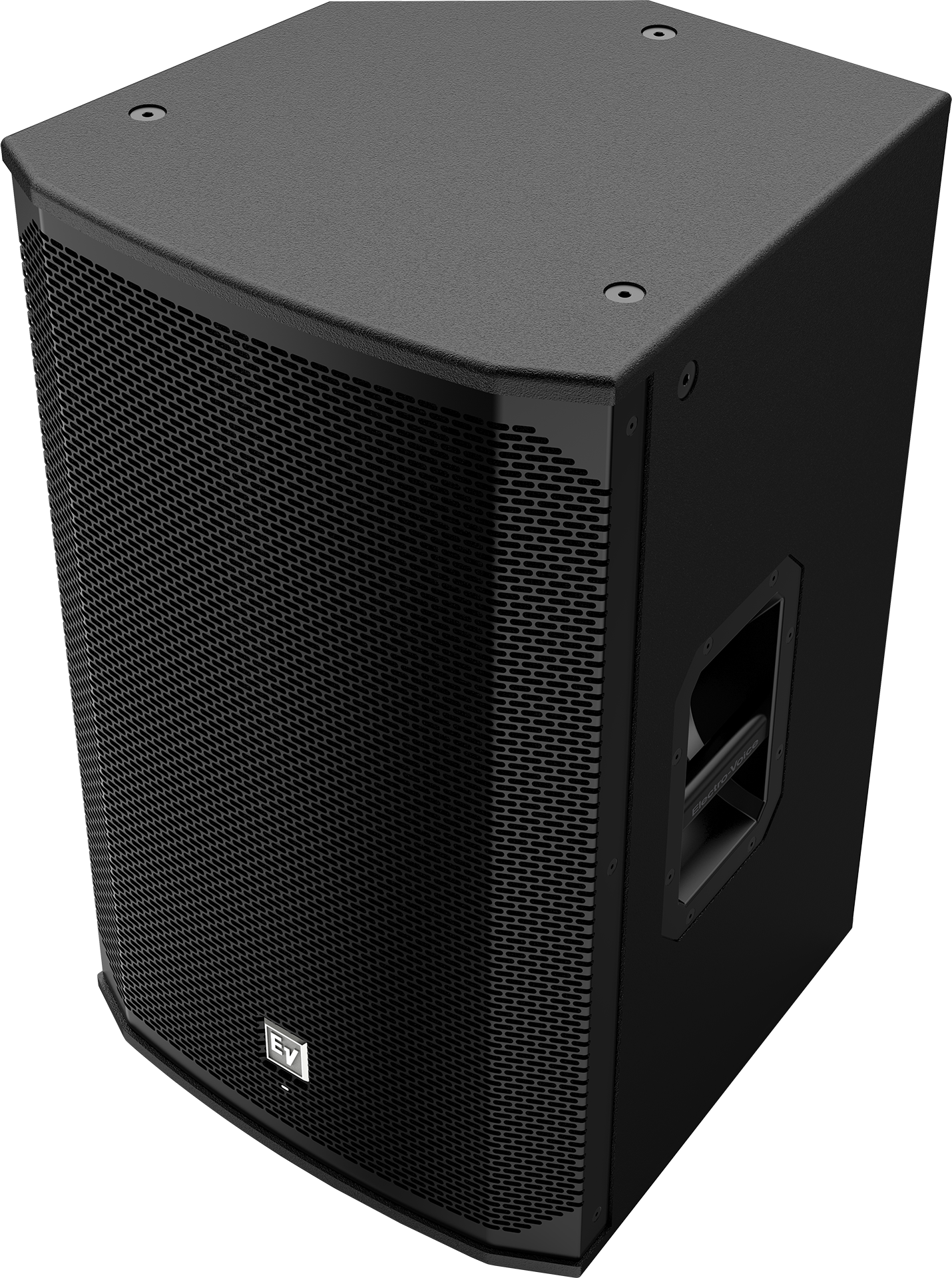

| Mounting Options: | Pole Mount, Floor Wedge, 8 x M10 Fly Points |
| Power Source: | Standard IEC AC cable |
| Height: | 26.9" |
| Width: | 17.0" |
| Depth: | 16.8" |
| Weight: | 53.7 lbs |
