Live Digital Mixing Has Never Been Easier!

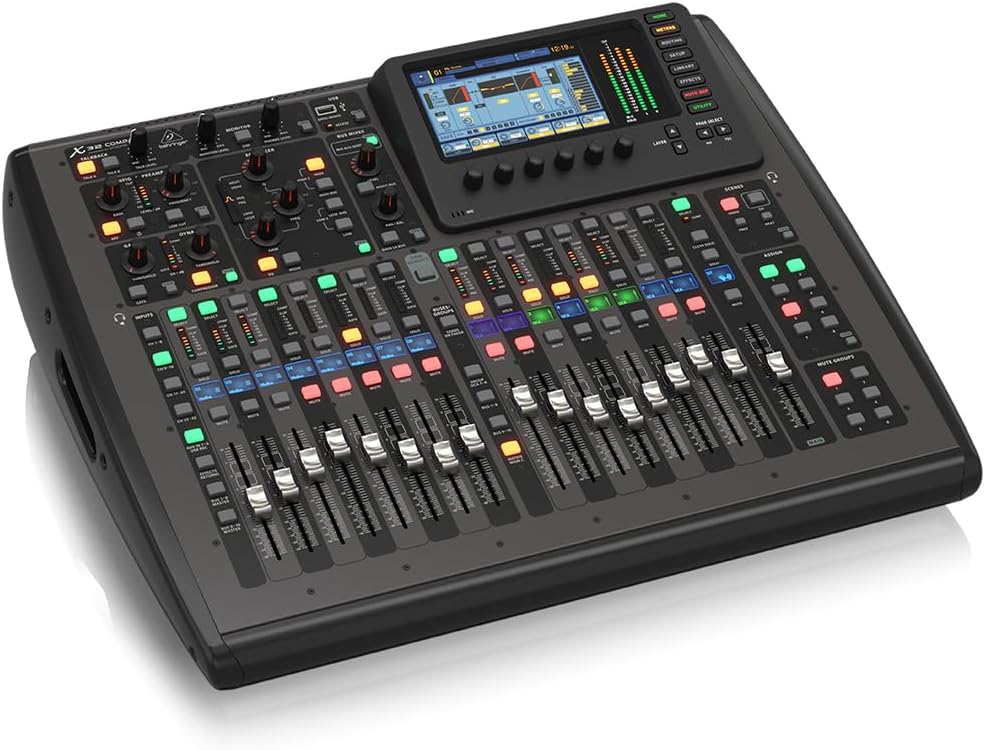

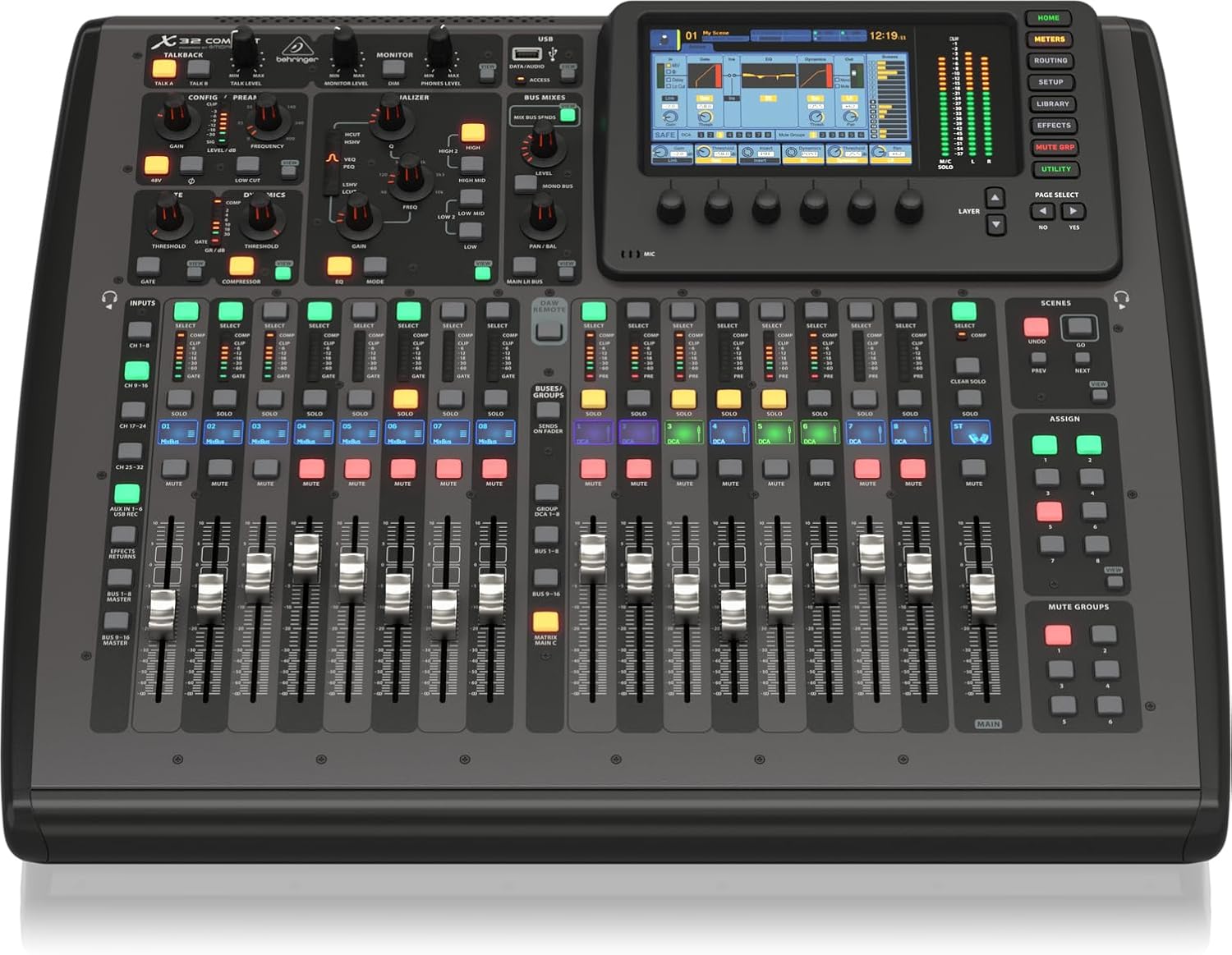

Behringer's X32 Compact digital mixer packs everything you need to easily mix and record a live show into a svelte, roadworthy package. But with its amazing-sounding Midas-designed mic preamps, this mixer is also at home in the studio. The X32 Compact's 40 inputs and 16 mix buses give you the flexibility you need, audio engineers love how the USB interface delivers instant compatibility with major DAWs. You also get serious signal processing that can be quickly configured for sessions of any size. Factor in its amazingly intuitive interface and you have a winner: Behringer's X32 Compact is for you.
Behringer X32 Compact Features:
- Auto Mix yields automatic gain sharing and mic ducking
- X-Touch integration allows direct control of parameters over Ethernet
- Set up a full crossover without using a matrix mix
- Reverse polarity on your outputs for easy speaker alignment
- Redesigned Behringer X32-Edit app features a new interface, full screen capabilities, floating windows, configurable fader layers, and more
- 40-input, 25-total-bus digital mixer
- 16 mix buses, Main LCR, 6 matrix buses
- 16 programmable Midas-designed mic preamps deliver audiophile sound quality
- Highly configurable, with 40 input channels and 17 motorized faders
- 6 matrix mix buses, 16 mix buses feature inserts, 6-band parametric EQs and dynamics
- Powerful scene management for easy handling of complex productions
- USB interface delivers instant compatibility with major DAWs
- Ultranet connectivity for optional Behringer P16 series personal mixers
- 48-channel digital snake ready (sold separately) via AES50 ports

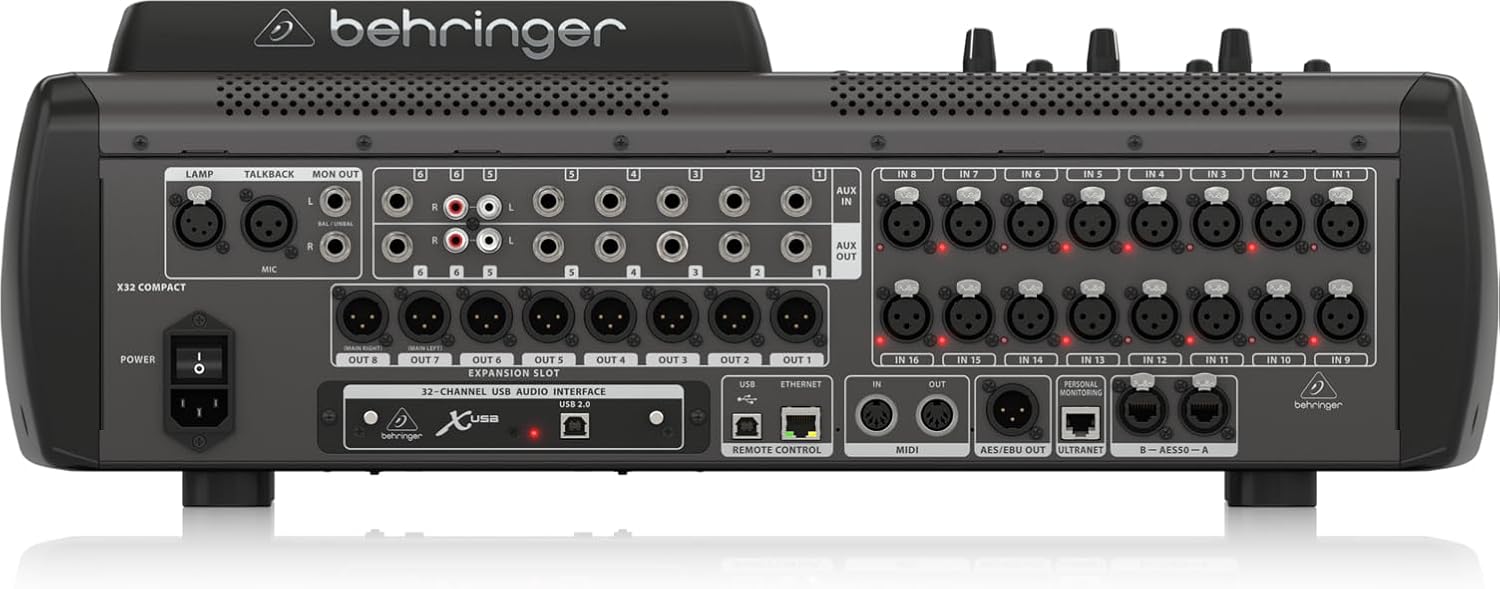

TECH SPECS
| Mixer Type: | Digital Mixer |
| Channels: | 40 |
| Inputs - Mic Preamps: | 16 x XLR |
| Phantom Power: | 16 Channels |
| Outputs - Main: | 8 x XLR, 2 x 1/4" TRS (monitor) |
| Outputs - Digital: | 1 x XLR (AES) |
| Send/Return I/O: | 1 x Dual RCA Stereo (aux in), 6 x 1/4" TRS (aux in), 1 x Dual RCA Stereo (aux out), 6 x 1/4" TRS (aux out) |
| Busses/Groups: | 25 total (16 x bus, main LCR, 6 x matrix) |
| Inserts: | Yes |
| Talkback: | 1 x XLR |
| MIDI I/O: | In/Out |
| Data I/O: | 1 x Ultranet, 2 x AES50, 1 x Ethernet |
| Headphones: | 2 x 1/4" TRS (stereo) |
| USB: | 2 x Type B, 1 x Type A |
| I/O Expansion Slots: | 1 x slot (32-channel USB audio interface) |
| Faders: | 17 x 100mm (motorized) |
| A/D Resolution: | 24-bit/48kHz |
| EQ Bands: | 4-band EQ (channel strip), 6-band EQ (mix bus) |
| Effects: | Yes |
| Signal Processing: | Gate, Compressor |
| Features: | 1 x 4-pin (lamp) |
| DAW Control: | Yes |
| Screen: | 7" Color TFT (main), LCD with RGB Color Backlight (channel) |
| Power Source: | Standard IEC AC cable |
| Height: | 8.5" |
| Depth: | 20" |
| Width: | 24.6" |
| Weight: | 33.9 lbs |
